Fast industrial floor system for weekend job sites

Apr 06, 2017

MC-Bauchemie has developed a new industrial floor system in the form of MC-Floor Screed. With this, floors such as those encountered in production facilities, storage areas and material handling areas – including those with wheeled truck access – can be repaired in just one day. And after just one or two days more, they are ready for pedestrian and wheeled traffic usage again. MC-Floor Screed is very well suited to the rapid rehabilitation of industrial floors exposed to heavy wear and tear thanks to its fast hardening action and its high resistance. It is thus ideal for weekend job sites. With MC-Floor Screed, companies requiring such repair measures are able to reduce both downtime and cost.
MC‘s new industrial floor system MC-Floor Screed comprises the adhesive emulsion MC-Floor Screed BS, the easy-flowing and thus self-levelling cement-bound industrial floor MC-Floor Screed 10 and the fast-reacting speciality compound MC-Floor Screed 25.
MC-Floor Screed 10 for the repair of damaged, highly stressed industrial screeds

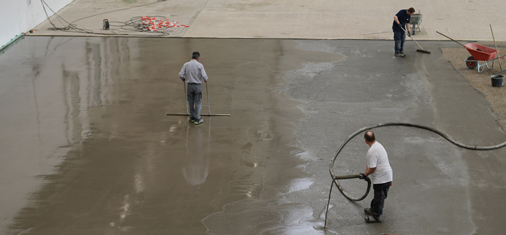

MC-Floor Screed 10 is the new rapid-hardening, high-strength industrial floor covering from MC for self-levelling layer thicknesses between 10 and 30 mm. It is also ideal for quickly repairing heavily worn industrial floors. The easy-flowing, single-component, cement-bound industrial floor is easy to apply and exhibits high load capacities even at low layer thicknesses. The substrate must be prepared in accordance with the relevant standards and primed with the adhesive emulsion MC-Floor Screed BS. MC-Floor Screed 10 is then laid fresh-in-fresh onto the primed surface and spread with an agitation rod.
Overcoatable after 24 hours and fully accessible after 48 hours
The MC-Floor Screed 10 industrial floor system hardens virtually free of shrinkage and stress, can be walked on after just two hours and, after 24 hours, coated with products from the MC-DUR range. For fast weekend job sites, overcoating can be effectively carried out by a product from the MC-Floor TopSpeed range, the high-speed coating system from MC.
For this, the surface is primed with MC-Floor TopSpeed SC and then, depending on requirements, scattered with quartz sand. The next coat can be applied after a waiting period of just two hours. And after around 48 hours, the industrial floor is ready for reuse. It reaches a compressive strength of 20 N/mm² after one day, rising to 35 N/mm² after seven days. Following complete hydration, the final compressive strength value is  45 N/mm².
MC-Floor Screed 25 for layer thicknesses between 25 and 70 mm
The fast-reacting speciality compound MC-Floor Screed 25 is mixed with 0 to 8 mm grain screed sand, pretreated in its earth-damp state in accordance with the applicable standards, and then laid onto a substrate primed with MC-Floor Screed BS. It is then levelled and smoothed by hand using standard height gauges. MC-Floor Screed 25 is suitable for repairing areas with layer thicknesses between 25 and 70 mm. It hardens quickly and is shrinkage-free, enabling it to be walked on after approximately four hours. It is ready for overcoating after two days. After three days, it reaches a compressive strength of 35 N/mm², rising to 45 N/mm² after 28 days.


Your contact
Saki M. Moysidis, PR-Manager

MC-Floor Screed is very well suited to the rapid rehabilitation of industrial floors exposed to heavy wear and tear thanks to its fast hardening action and its high resistance. It is thus ideal for weekend job sites.
MC-Floor Screed is very well suited to the rapid rehabilitation of industrial floors exposed to heavy wear and tear thanks to its fast hardening action and its high resistance. It is thus ideal for weekend job sites.
© MC-Bauchemie 2024
abs 123 abs 123 abs 123 abs 123 abs 123 abs 123 abs 123
